Description
Deep Gold. Major Performance.
The Minelab GPZ 7000 combines advanced ZVT Technology™, a Super-D search coil, precision ground balancing, built-in GPS and wireless audio for serious gold prospecting in demanding ground.
ZVT Technology™
Minelab's exclusive Zero Voltage Transmission technology uses high-power magnetic fields to provide exceptional sensitivity and depth in mineralised soil. Minelab states the GPZ 7000 can deliver up to 40% more depth than previous GPX Series detectors.
Super-D Coil Advantage
The Super-D coil is designed for strong sensitivity to both small and large gold targets, improved ground coverage and stable performance in highly mineralised conditions.
Precision Ground Balance
Automatic and manual ground balance help the detector remain stable across normal, difficult and highly mineralised soils. The Quick-Trak trigger lets you quickly rebalance as conditions change.
Enhanced Noise Immunity
With 256 Noise Cancel channels and automatic or manual noise cancelling, the GPZ 7000 is designed to reduce atmospheric and electrical interference so faint target responses are easier to hear.

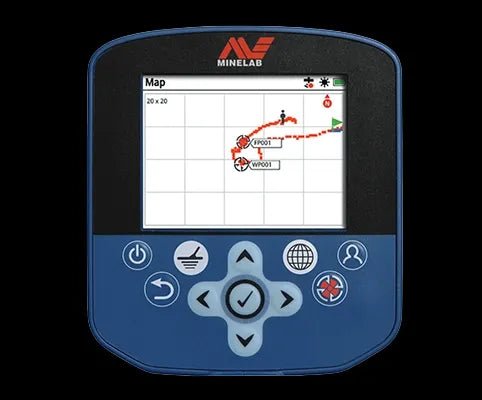

Integrated GPS & Mapping
Track routes, save gold locations and manage detecting data using the built-in GPS and Minelab XChange 2 PC software.

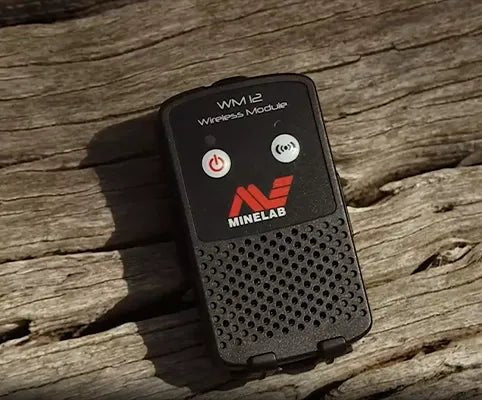

Wireless Audio Options
The included WM 12 wireless module provides low-latency target audio without a headphone cable attached directly to the detector.
Key Features
Fine-tune performance for changing ground conditions.
Adjust tone response to suit your hearing and target preferences.
50 threshold levels with 100 pitch options.
Sync saved GPS data with XChange 2.
Detection & Audio
Technology: ZVT
Detect Modes: High Yield, General, Extra Deep
Ground Types: Normal, Difficult, Severe
Ground Balance: Auto & Manual with Quick-Trak
Sensitivity: 1–20
Noise Cancel: Auto & Manual, 256 channels
Display: Full-color 320 × 240 LCD
Hardware
Standard Coil: 14" × 13" Super-D configuration
Coil Waterproofing: Submersible to 3 ft. (1 m)
Battery: Rechargeable Li-Ion, 7.2V DC, 72Wh
Weight: 7.32 lb with GPZ 14 coil, skidplate and battery
Wireless Audio: WM 12 module
USB: XChange 2 PC connectivity
Warranty: 3 years on control box and coil

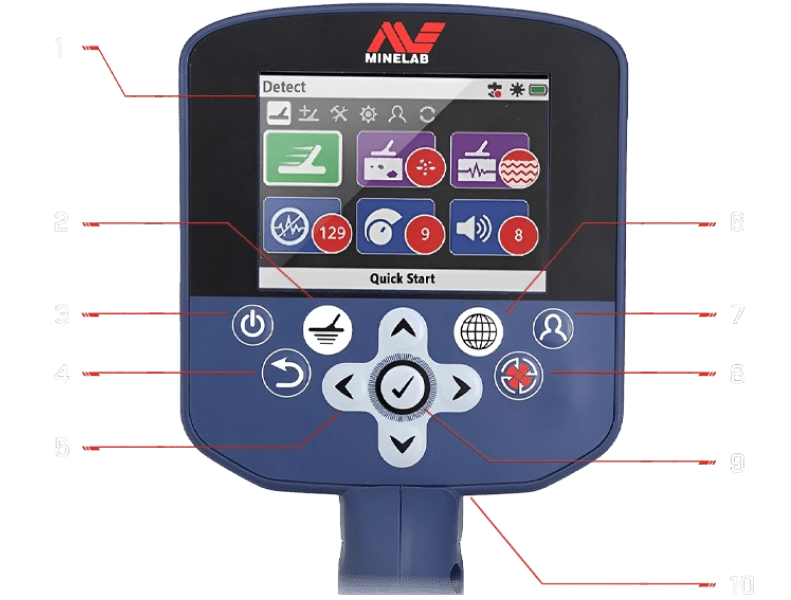

Control Panel

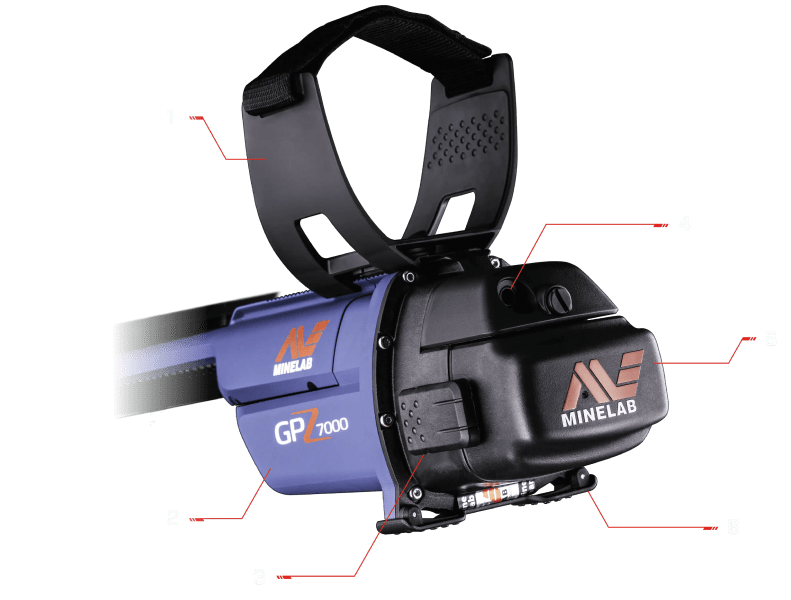

Detector Layout

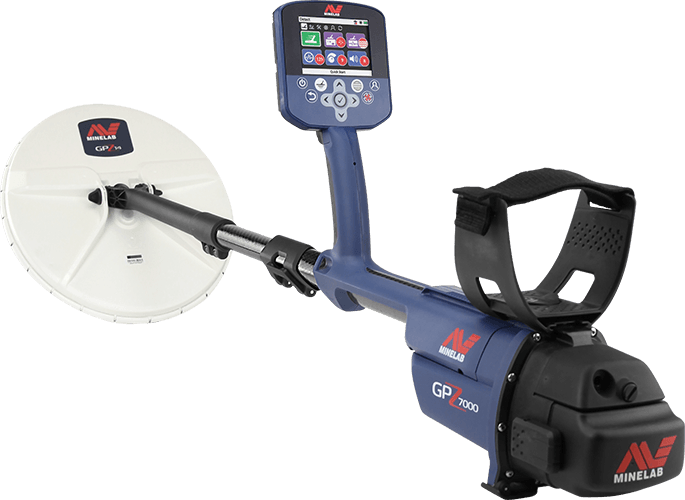

Minelab GPZ 7000
Designed for serious prospectors who want maximum depth, stable performance in mineralised ground and advanced GPS and wireless-audio capability.
