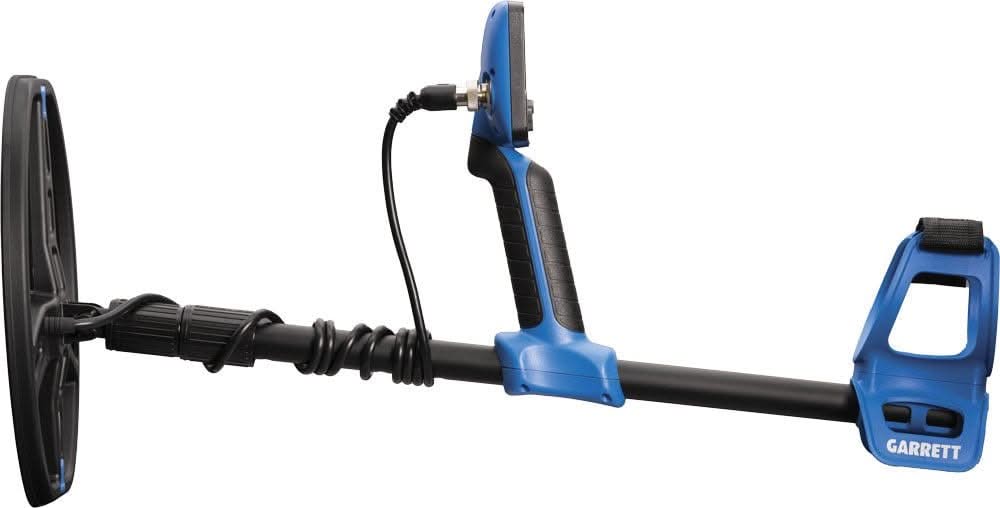

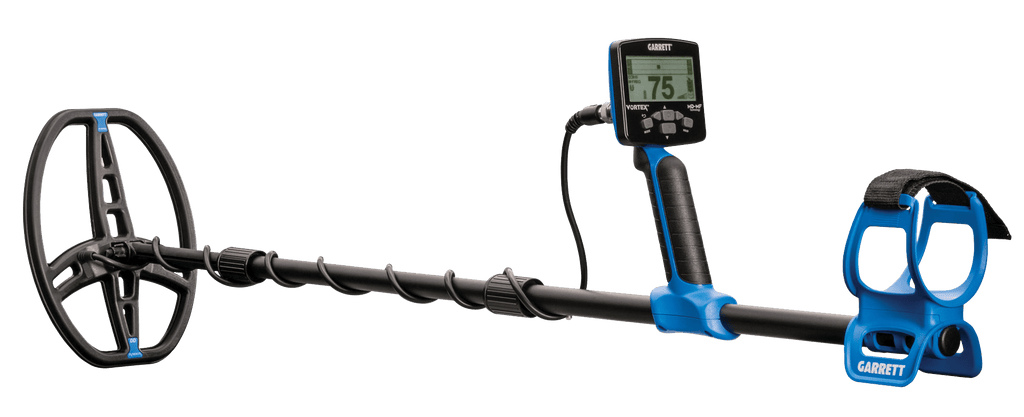

Garrett Vortex VX9 Metal Detector
The Garrett Vortex VX9 is the professional model in the Vortex series, built for detectorists who want full Multi-Dimensional Multi-Frequency performance, expanded target information, and more control in challenging sites. The VX9 features a full three-tiered MD-MF Target ID display, seven frequency options, Multi-Salt beach operation, seven search modes, three levels of recovery speed control, built-in Z-Lynk wireless readiness, Iron Volume, and a fully submersible waterproof design rated to 16 feet.

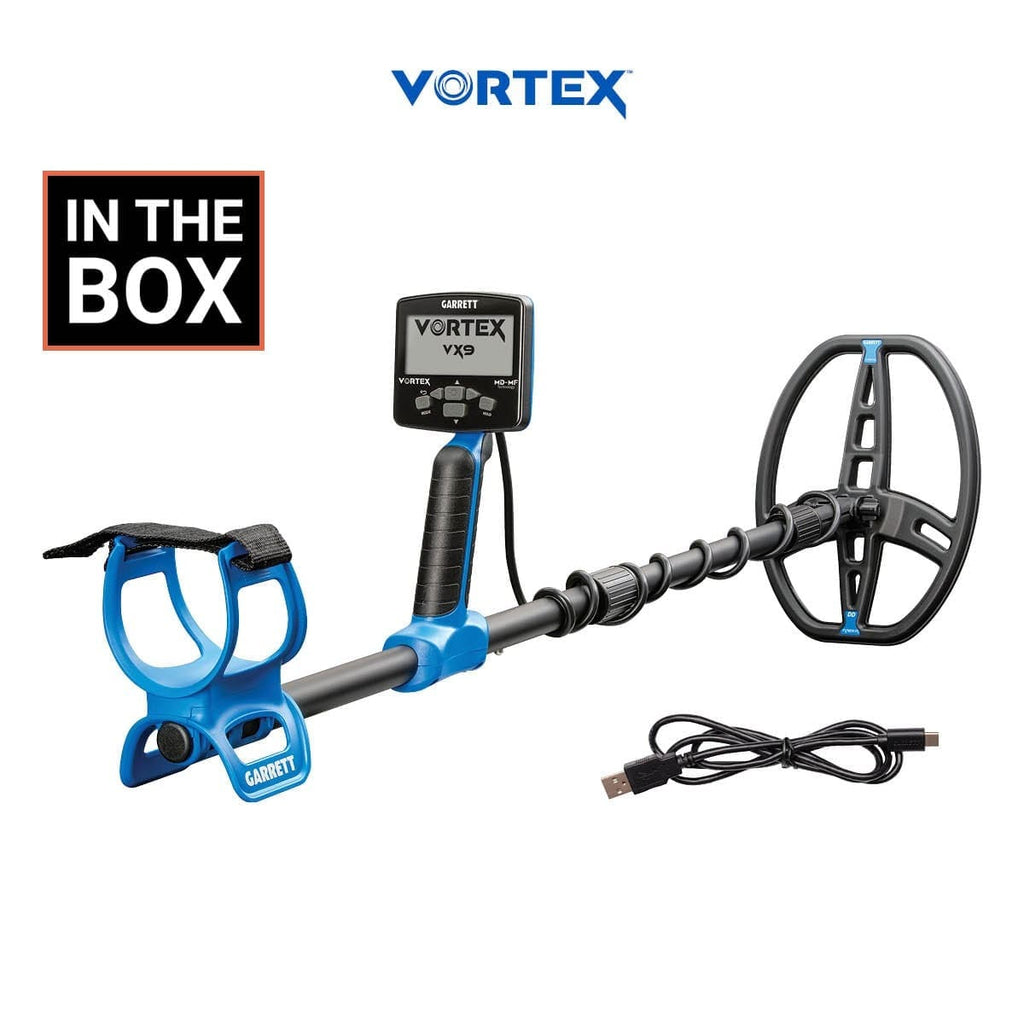

IN THE BOX
Vortex VX9 comes ready for action with everything you need to start detecting:
Advanced Vortex VX9 Features
Seven Frequency Options
Choose from Multi, Multi-Salt, 5 kHz, 9 kHz, 13 kHz, 18 kHz, or 25 kHz.
Wireless Ready
Built-in Z-Lynk wireless technology lets you search without cords when paired with compatible Garrett wireless accessories.
Seven Search Modes
Includes Thin Coins, Fast, Zero Discrimination, Beach, Standard, US Coins, and Custom.

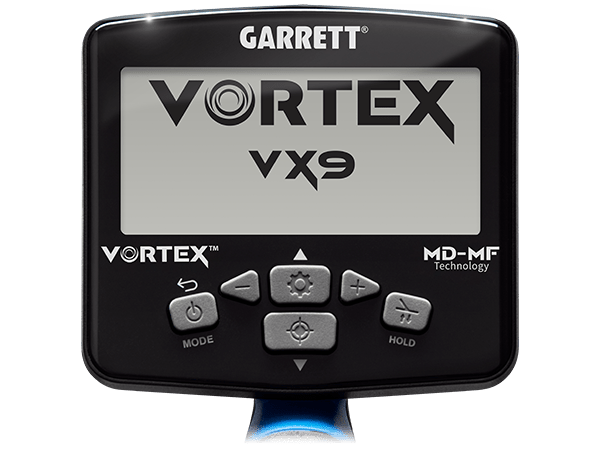

Full Three-Tiered MD-MF Target ID Scale
When operating in Multi-Frequency, the VX9 displays a non-ferrous scale and two ferrous scales to help identify unwanted iron trash. Complex targets may appear on more than one scale at the same time, giving you more target information before you dig.
Includes Beach Mode and Multi-Salt
The VX9 includes Beach Mode and Multi-Frequency Salt operation for smooth performance and deep Target ID accuracy along wet salt beaches and in the surf. It is fully submersible to 16 feet, making it ready for shoreline, water, and wet sand detecting.
Fast Mode and Recovery Speed Control
Fast Mode is designed for trashy areas where abundant trash can mask adjacent coins. It is also ideal for competition hunts. The VX9 includes three levels of recovery speed control to help distinguish adjacent targets more clearly in busy ground.
Lightweight and Collapsible
The VX9 compacts down to 24.75" and extends to 56.75", making it easy to transport and comfortable to adjust for the user. It weighs 2.9 lbs without the coil cover and approximately 3.05 lbs with the coil cover installed.
Upgradeable Waterproof Detector Series
The Vortex series is built as an updateable and upgradeable waterproof detector platform. As your skills increase, Garrett’s Vortex platform allows software-based model upgrades, adding more advanced features and performance.
Why Choose the Garrett Vortex VX9?
Professional VX9 Model
The VX9 adds the full three-tiered target ID display, Multi-Salt, extra frequency choices, and additional controls.
Thin Coins Mode
Designed for fine, lower-conductive coins such as hammered silver and thin gold coins.
Fast Mode
Excellent for competition hunts and high-trash search areas where speed and separation matter.
Iron Volume
Eight adjustment levels let you reduce the volume of ferrous targets while keeping non-ferrous targets at normal volume.
Z-Lynk Wireless Ready
Built-in Z-Lynk wireless technology supports compatible Garrett wireless headphones and accessories.
11" Multi-Flex™ DD Searchcoil
Includes an 11" Multi-Flex™ DD searchcoil with protective cover for strong all-around detecting performance.
Fully Submersible
Submersible to 16 feet / 5 meters for water, wet sand, shallow surf, and harsh hunting environments.
LCD Backlight
Backlit display improves visibility during early morning, evening, and low-light hunts.
Upgradeable Platform
Vortex models are updateable and upgradeable, allowing the detector platform to grow with your skill level.
Garrett Vortex VX9 Specifications
| Detector Model | Garrett Vortex VX9 |
|---|---|
| Target ID Scale | Full three-tiered MD-MF Target ID scale with one non-ferrous scale and two ferrous scales |
| Frequency Options | Multi, Multi-Salt, 5 kHz, 9 kHz, 13 kHz, 18 kHz, 25 kHz |
| Search Modes | Thin Coins, Fast, Zero Discrimination, Beach, Standard, US Coins, Custom |
| Recovery Speed | 3 levels |
| Waterproof Rating | Submersible to 16 feet / 5 meters |
| Z-Lynk Wireless Enabled | Yes |
| ID Tones | 5 |
| Iron Volume | Yes, 8 adjustment levels |
| Pinpoint Mode | Yes |
| Iron Audio | Yes |
| Multi-Dimensional Multi-Frequency | Yes |
| Ground Balance | Yes |
| Frequency Shift / EMI Reduction | Yes |
| Volume Control | Yes |
| LCD Backlight | Yes |
| Detector Length | 24.75" to 56.75" |
| Weight | 2.9 lbs without coil cover; approximately 3.05 lbs with coil cover installed |
| Included Searchcoil | 11" Multi-Flex™ DD searchcoil with protective cover |
| Included Accessories | High speed USB charging/data cable, premium armrest strap, quick-start guide |
| Updateable / Upgradeable | Yes |
